AUTO PISTON FILLING MACHINES

Our Monobloc piston filling systems are suitable for a very wide range of products such culinary oil, water, wines and spirits

Automatic cap feeder, Full safety guarding, Conveyor belt return system for single operator use, Electrical regulation of the speed via inverter, Fully adjustable height, Easy strip down for cleaning. Machine manufactured in conformity with the current CE rules.

Output speeds up to 600 Bph

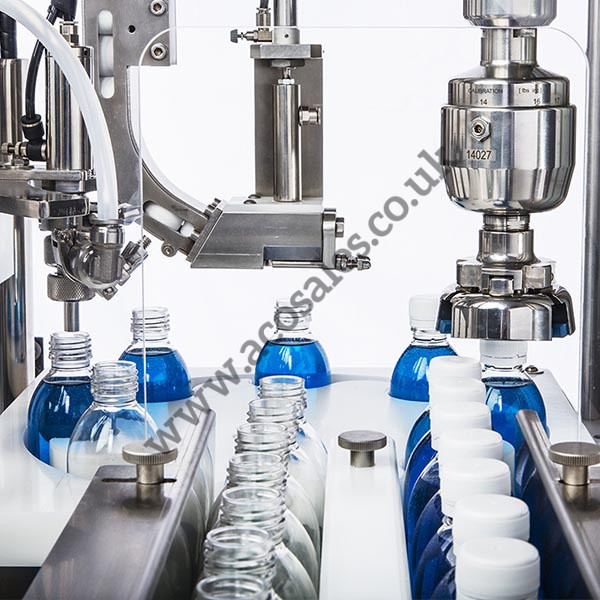

Piston filling 2 heads –  For glass, PET and plastic bottles

Capping turret single head – For ROPP, Plastic, Cork or T stopper

Bottle infeed and discharge conveyors both positioned on the front side for single operator use.

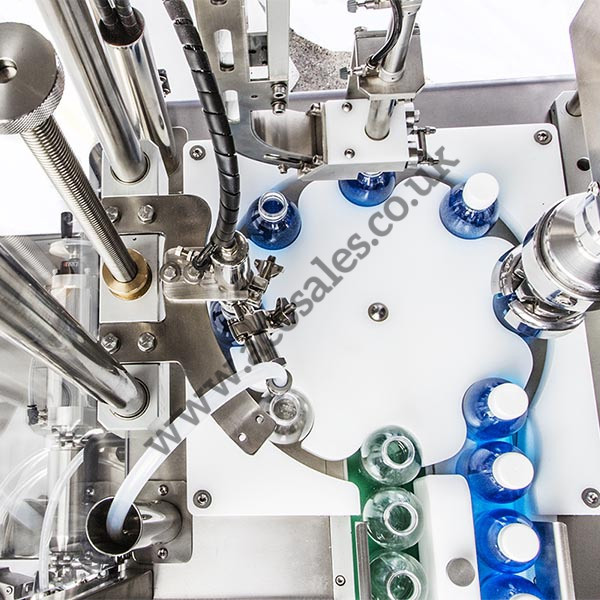

The machine is supplied with a protective enclosure featuring front and rear access doors and is equipped with an eight-position star wheel with mechanical phasing clutch.

Maximum bottle diameter: 80 mm

Maximum bottle height: 350 mm

Power supply: 220 V – 50 Hz – single phase – 16 A.

Air consumption: approximately 250 Nl/min

This machine fits well with our semi-auto bottle rinser by air or liquid to complete a full production line.
